midi2rms – midi volume fader curve sampling

volume-behaviorA very crucial and maybe often underestimated point for working with (volume) faders, especially in live electronics application is their curve/behavior. Which range does it cover? How fast does „it“ get „loud“. What is the behavior around the +0 dB mark?

I sampled the midi volume fader behavior from several of the most popular Digital Audio Workstations. The difference is quite obvious as you can see in the graph to the right.

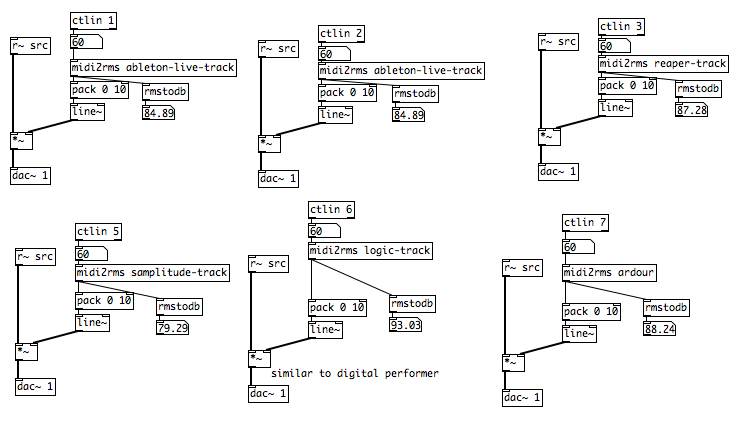

pd-fader-behavior-screenshotI made a Pure Data abstraction as replacement for the frequently used [fadtorms] or [dbtorms]. In connection with the .txt sample files it can be used to scale your midi fader input.
Get the abstraction including sample files and Matlab plots here:

midi2rms_0.11.zip
